Tuesday 18 January 2011

Overview for 18/1-11

Active Directory Users are able to login on a windows PC on ITET1 domain - Task Done


It is a bigger task to make Vlan's running but in the weekend and today i have read about some about it.

So today's task was to see if i was able to make new Vlan's up and trying to see if it works.
This is som of the commands i used to make 3 Vlan's.



 After typing in the commands it look like this:


List of IP's the router is sending out from eatch port:
Port 4 : 192.168.1.149 - Con to Windows Server
Port 3 : 192.168.1.139 - Con to Windows Client
Port 2 : 192.168.1.140 - Con to Laptop
Port 1 : 192.168.1.140 - Con to Laptop

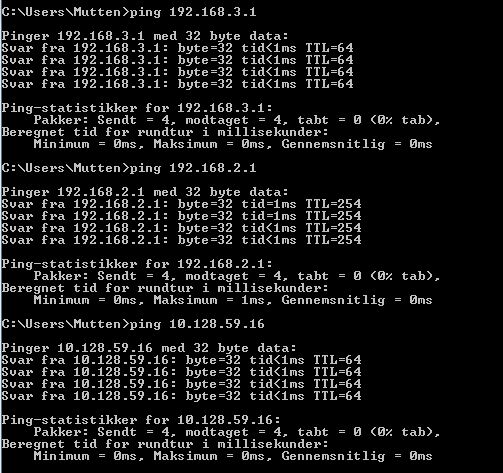

Now i'm able to ping from the Server, a windows client and a labtop
I think i need to Talk to Morten ( Teatcher ) about if this is right


More to come
Last demo is Friday
Posted by at

1 comment:

  1. M. Nielsen18 January 2011 at 20:29

    We need to look at the bridges too.

    I think we want to assign 192.168.1.1, .2.1, and .3.1 to three bridges and then set up routing between the subnets.
    Then on port 1, you access the router using .1.1. On port 2, you use .2.1 and so on. Other combination should not work (before routing is set up).

    And on a sidenote. Bridging is on layer 2 and routing is on layer 3, so it ought to be fairly easy to seperate.
